TRACE: Interactive Bi-Directional Cable Tracing Amid Clutter

Paper (PDF) soon Code soon Contact

Monochrome cables cannot be told apart by appearance alone. TRACE traces each cable from both ends, locates where the two estimates disagree, and manipulates the cables to resolve ambiguities.

↓ Scroll to learn more ↓

Across 60 cluttered trials, TRACE raises correctly traced cable length from 40.2% to 89.3% — and recovers every cable in 32 / 60 scenes.

89.3%
cable length traced, with clutter
77%
average gain over HANDLOOM 2.0
32 / 60
scenes traced fully correctly
110
physical trials, no simulation

The monochrome tracing problem

When cables differ in color, each one can be followed by its hue. Monochrome cables remove that cue: every strand looks the same, so at each crossing it is ambiguous which way a given cable continues. The system must instead reason about geometry, and where the geometry is ambiguous, resolve it by interacting with the scene. In the figure below, the only reliable visual anchors are the detected connector endpoints.

Monochrome cables with detected connector endpoints

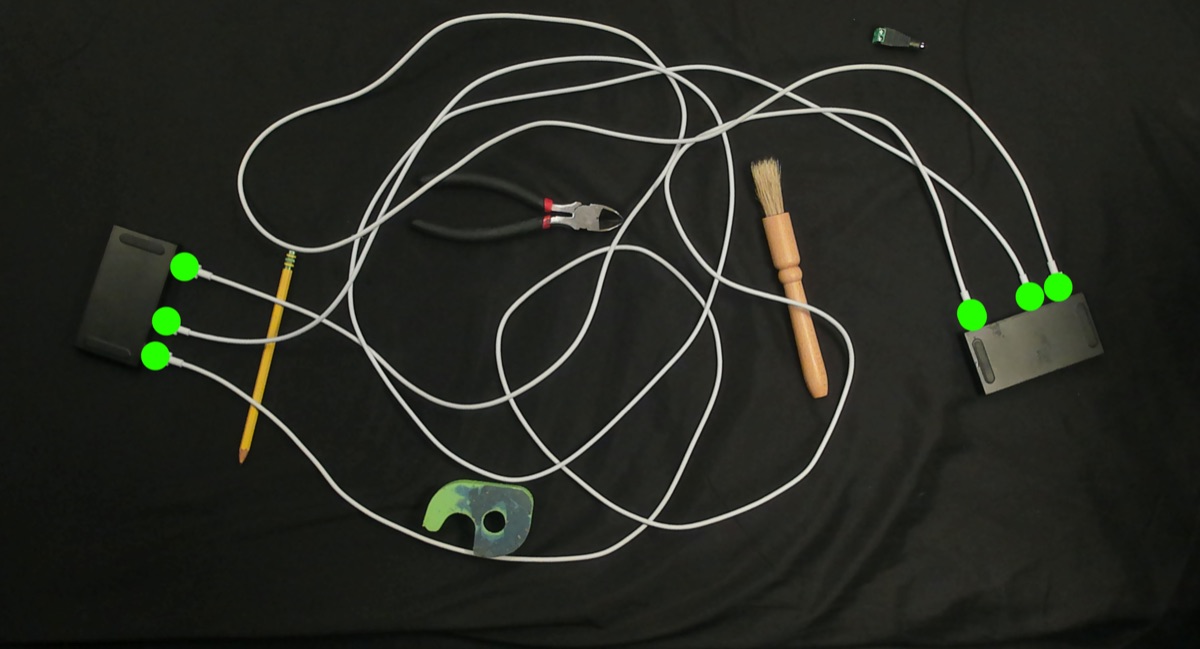

A Faster R-CNN detects the connectors (green). TRACE finds which endpoint connects to which and recovers the correct trace for each cable.

The TRACE pipeline

TRACE builds on the MANIP framework for modular interactive perception. Each iteration is a closed loop of three stages: estimate the state of the cables, identify where that estimate is uncertain, and act to reduce the uncertainty. The system then re-images the scene and repeats until the trace is topologically consistent.

TRACE architecture: a 4K overhead RGB image feeds the State Estimator (Object Detection + HANDLOOM), then the Divergence Classifier + Action Selector labels each divergence point as object, tangential crossing, or cluster, then the IP Primitives stage runs Cluster Dilation, Tangential Push, or Object Decluttering, and the loop continues until Termination.

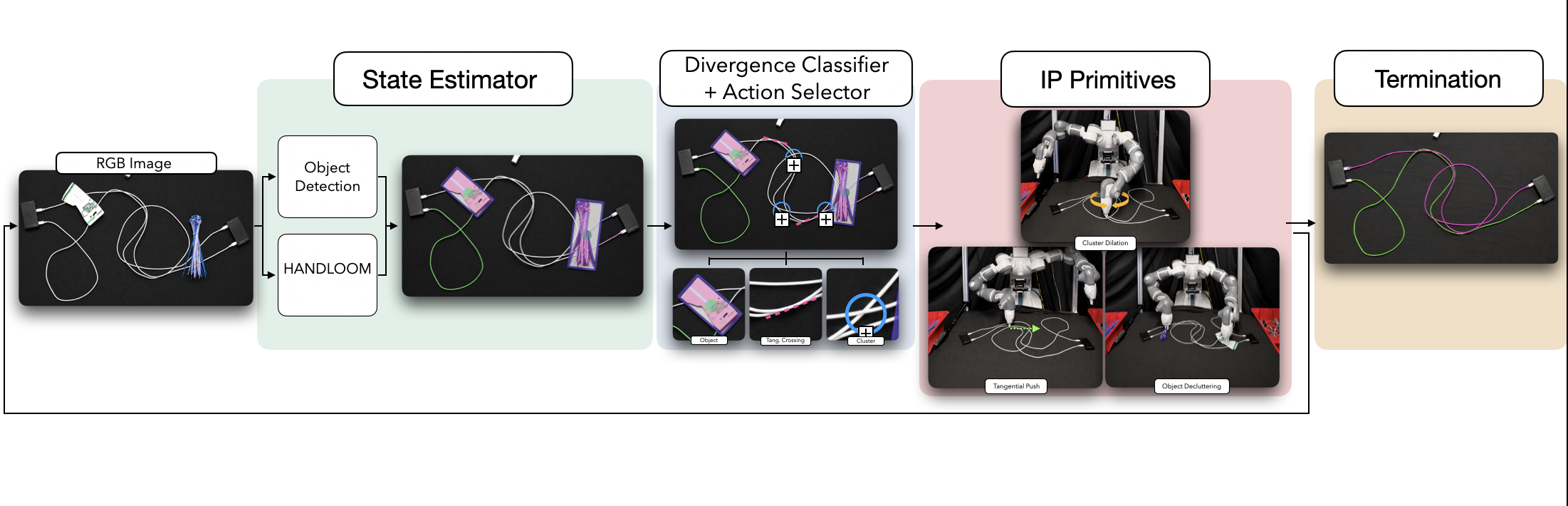

Fig. 2 — the TRACE architecture (MANIP framework). The loop re-images and re-traces until every cable is topologically consistent, up to Tmax = 10 iterations.

The state estimator pairs a Faster R-CNN connector detector with the HANDLOOM 1.0 single-cable tracer, applied from both ends of each cable. The Meta Policy Selector then combines three signals that the prior heuristic baselines do not consider jointly — object masks, a local cable-density estimate, and the consistency between the two traces — to select an appropriate action. The method operates on monocular RGB images alone, without depth, stereo, or range data.

Bi-directional tracing & divergence

TRACE traces from every connector, which yields two independent estimates for each cable. The point at which the estimate from connector A and the estimate from connector B cease to agree is, by construction, where the cable’s identity is uncertain — a divergence point. The steps below illustrate this.

Identifying these points proceeds in two passes. The first checks reciprocal consistency, flagging traces whose forward and backward directions fail to overlap. The second analyzes each flagged location and classifies it by how densely cables are packed nearby: a cable cluster where they are dense, or a shallow tangential crossing where they merely cross.

Bi-directional traces with divergence points

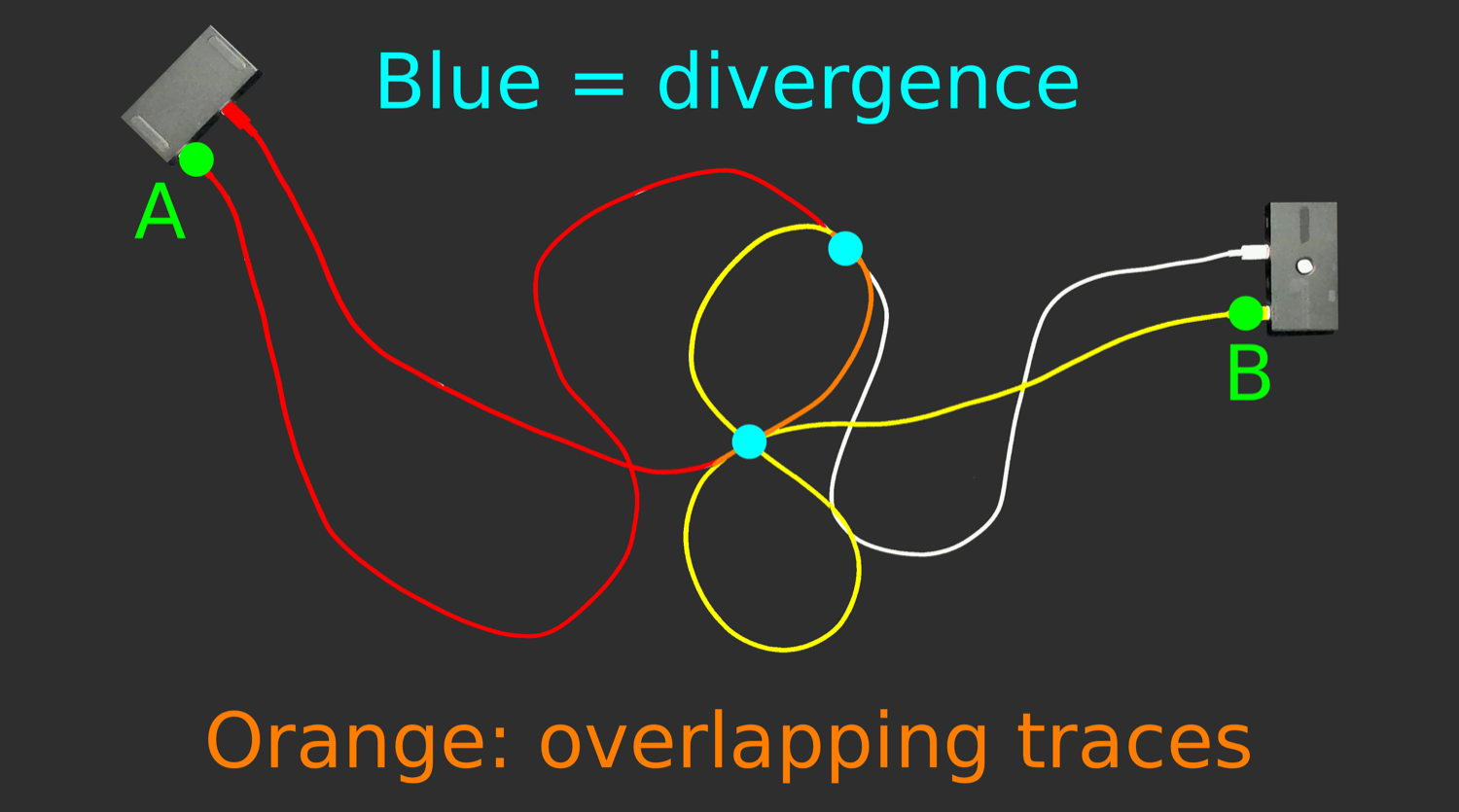

A and B connectors are detected (green). Each one seeds an independent trace.

Interactive perception primitives

At each divergence point, the Meta Policy Selector identifies one of three situations and applies the corresponding action: Bimanual Object Decluttering when a foreground object occludes the cable, a Divergence Push at a shallow tangential crossing, or a Cluster Dilation at a dense knot where cables visually merge. Use the toggle to see each case.

Selector detects:
Placeholder: bimanual object decluttering
Bimanual Object Decluttering A segmentation model finds objects resting on the cables; a pick-and-place clears them. When two objects sit on opposite sides, both YuMi arms clear them at once.
Divergence Push along the cable-distance-transform ridge

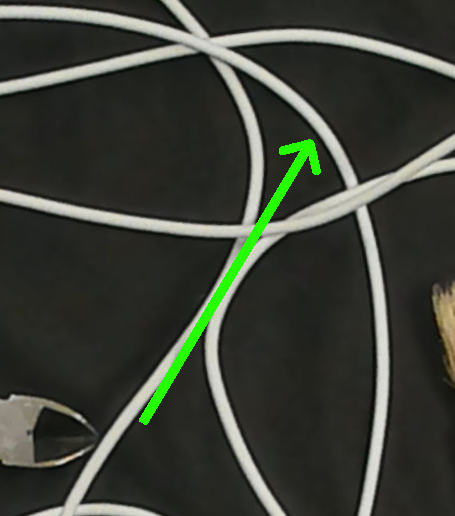

Divergence Push TRACE computes a Cable Distance Transform and extracts its ridges — the paths of maximum clearance between cables — using a Frangi vesselness filter. The end-effector follows that ridge through the crossing and a short distance (12 px) beyond, separating the two cables.
Cluster Dilation at the deepest open point

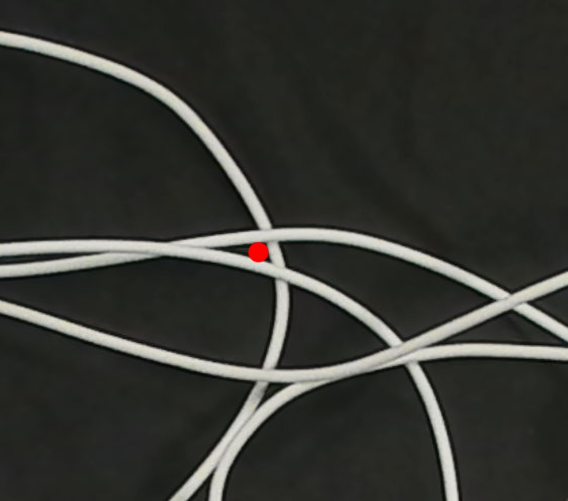

Cluster Dilation A closed gripper moves to the most open point within the cluster, opens its jaws, and rotates 180° in each direction to spread the merged cables apart.

The highlighted card is the action TRACE selects for the chosen case. Hover the Cluster Dilation card to see the gripper motion. The object-decluttering frame is illustrative.

The full perception–action loop

The viewer below shows one complete logged run of this loop, on the hardest setting — 4 cables, 8 connectors. It alternates between perception (the density heatmap of all eight traces) and action (the Divergence Push the robot plans); each caption is drawn from the system’s action log, and the colored traces become continuous as the ambiguities are resolved.

Robot run frame
Initial estimate
0 / 8

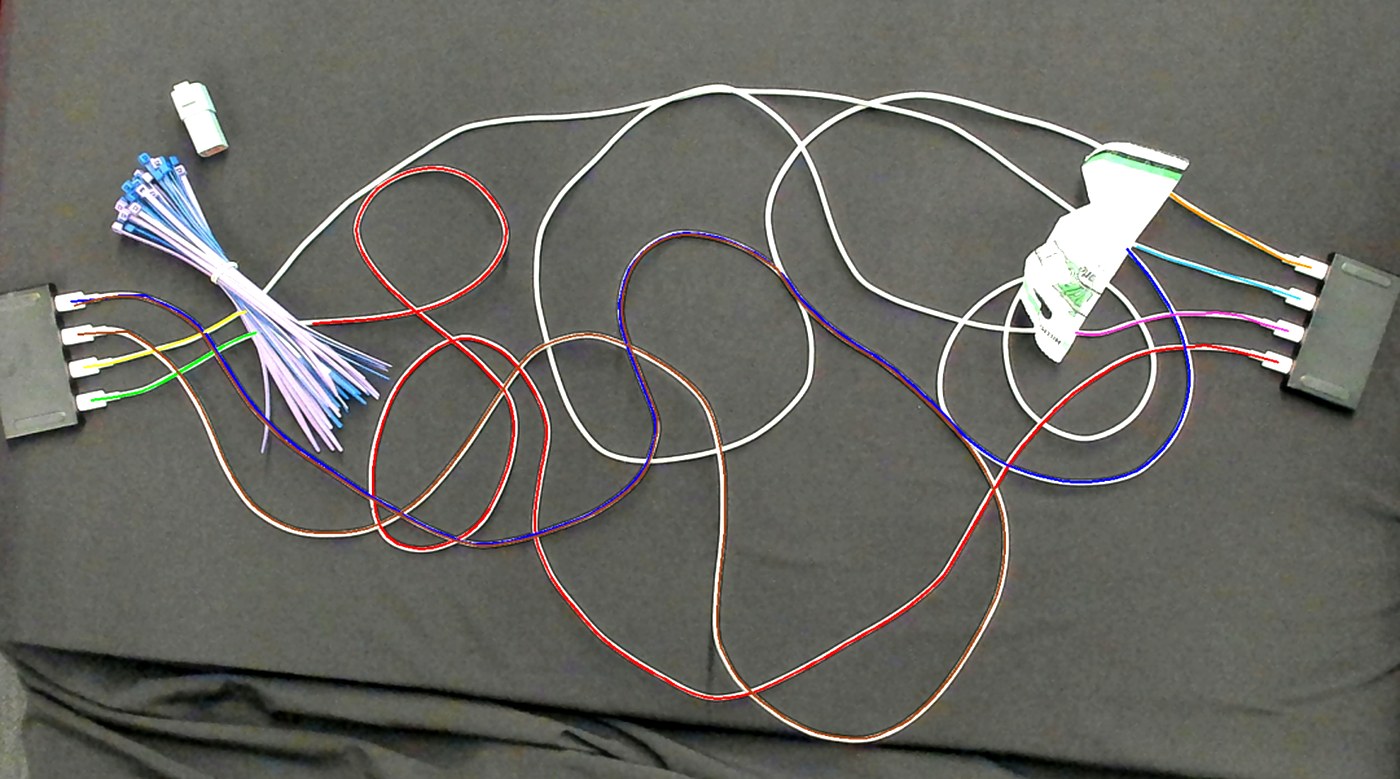

Iteration 0 — initial bi-directional trace of all eight connectors. Many cables break at crossings.

A complete pipeline run on an eight-connector Tier 4 scene.

Experimental setup

All evaluation is conducted on physical hardware, comprising 110 trials in total: 50 without foreground clutter and 60 with it (15 per tier). No simulation or depth sensing is used.

Robot
Bimanual ABB YuMi; motion planning via Jacobi Motion
Camera
Overhead Logitech BRIO, 4K, 1 m above the workspace
Perception
Monocular RGB only — no depth, stereo, or range data
Cables
2–4 white 6-foot USB-C ↔ USB-C cables, randomly arranged
Endpoints
Connectors seated in two 8×5 cm black USB hubs on opposite sides
Compute / iter
Tier 4: 6.4 s tracing + 13.4 s execution (Ryzen 7 7700X, RTX 4090)

Tiers of complexity

Evaluation follows the tiered protocol from MANIP: four tiers scale the scene from 2 cables and 2 crossings up to 4 cables and 4–5 crossings, with 3–4 clutter objects throughout.

Per sceneTier 1Tier 2Tier 3Tier 4
Cables2234
Tangential crossings233–44–5
Foreground objects3–43–43–43–4

The four complexity tiers used for every evaluation below.

Cable-tracing accuracy

Each bar shows the average percentage of cable length correctly traced, across the four complexity tiers. The two scenarios can be compared using the toggle; the margin over HANDLOOM 2.0 grows substantially once foreground clutter is present.

HANDLOOM 2.0 TRACE

With foreground clutter, TRACE correctly traces all cables in 32 of 60 trials, a 77% average improvement over HANDLOOM 2.0.

% length tracedTier 1Tier 2Tier 3Tier 4

Against other tracers & frontier VLMs

MethodComputeInitialFinal
RT-DLO (600×600 crops)0.05 s57.1%76.0%
TRACE (crops)0.40 s68.3%97.5%
Nano Banana Pro (VLM)—37.5%34.8%
ChatGPT 5.2 (VLM)—19.5%26.8%
TRACE0.40 s40.2%89.3%

For TRACE, the “final” column reflects accuracy after its interactive moves; the baseline methods are evaluated from a single pass.

TRACE vs. frontier VLMs

When asked to trace the same monochrome scene, current vision-language models tend to produce connections that are not present in the image. TRACE’s geometric, interactive approach is substantially more accurate.

Monochrome scene (left) vs a VLM's hallucinated colored tracing (right)
89.3%TRACE
34.8%Nano Banana Pro
26.8%ChatGPT 5.2

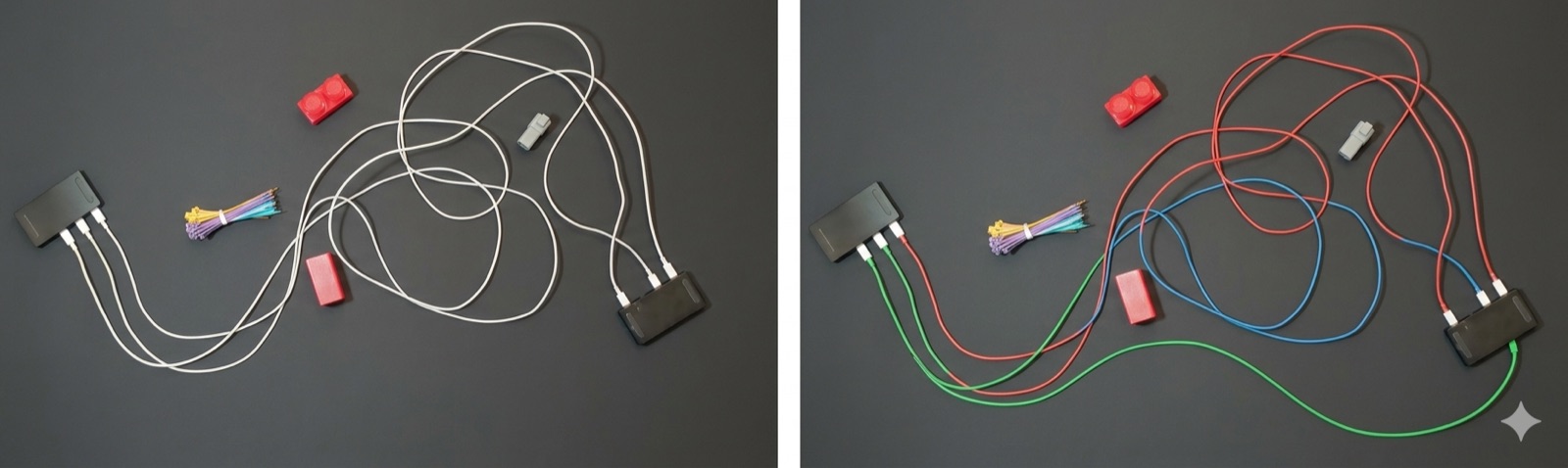

Left: the monochrome input. Right: a VLM’s colored reconstruction, which is incorrect where cables cross. Values are final correctly-traced length; spurious cables are scored as zero.
